MS3800VA质量流量控制器实物图
MS3800VA质量流量控制器实物图

质量流量控制器MS3800VA

质量流量控制器MS3800VA.pdf
Product Detail
MS3800VA质量流量控制器

        MS系列比M系列更为紧凑，但并不牺牲性能。它适用于广泛的压力/温度条件，其有快速响应和高重复性的优势，数字越高其流量范围越广。MS3800VA是Line Tech推出的一款高精度的模拟式气体质量流量控制器，其通过精密的传感器和流量调节机制，实现了对气体流量的高精度、高稳定性的控制其可应对毫升级至数百升级的气体流量控制范围的工况需求， 且不受环境温度及压力变化的影响。适用领域和应用范围广泛，其可应用于以下行业：
1、实验室、研究所、大学等研发机构
2、玻璃、光纤等表面处理设备
3、金属加工行业
4、生物技术或制药行业
5、太阳能、半导体、光伏制造业
6、精密气体混合与分析
7、气体泄露检测系统
8、环保设备或燃料电池
9、 食品、化学、石化等行业气体流量监控

MS3800VA质量流量控制器具有以下优点：
1、高精度低流量
2、响应速度快
3、紧密连接
4、高稳定可移动传感器
5、高度耐腐蚀性
6、线性好
7、稳定性好
8、压力范围广

具体工作指标输出如下所示：

型号MS3800VA
范围(N2)2500slpm~5000slpm
响应时间< 2 秒
准确性满量程的±2%
重复性±0.25%
输入/输出信号0~5Vdc或4~20mA
供电+15 或 +24Vdc，350mA
最大工作压力< 13bar
最高工作温度0~50℃
泄漏率1X10 -9 atm.cc/sec
控制范围3~100%

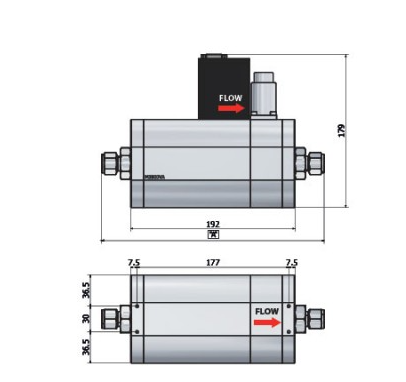

连接“A”尺寸（毫米）
1/2 "SW257

3/4 "SW

259.8

1"SW

267.8


热式气体质量流量控制器
模拟式气体质量流量控制器
大流量气体质量流量控制器
腐蚀性气体质量流量控制器
以上是Line Tech质量流量控制器的详细信息，如果您对Line Tech质量流量控制器的价格、型号、图片有什么疑问，请联系我们深圳市现代豪方仪器仪表科技有限公司获取Line Tech质量流量控制器最新信息。
